Hardwood Flooring Technical Specs

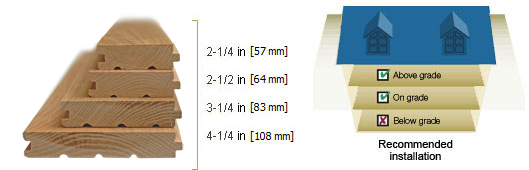

Mirage Classic

Mirage Classic Board
  • Boards with uniform thicknesses and widths, available in 2-1/4 in. [57 mm], 2-1/2 in. [64 mm], 3-1/4 in. [83 mm], and 4-1/4 in. [108 mm]
  • Boards interlock easily for simple installation
  • Nailed or stapled over a wood subfloor
  • Micro-V joint on all four sides of the board, prevents dust and dirt build-up
  • All finishes are VOC and formaldehyde free for better air quality
  • Can be sanded three to five times for an even longer lasting floor
  • Each box contains assorted lengths for great looks and quick installation
  • Exceptional durability
General specifications
General specifications

Description
  • Solid prefinished hardwood flooring
  • With tongues and grooves
  • Micro-V bevel (on 4 sides)
Thickness 3/4" [19 mm]
Length Random lengths (10" [250 mm] to 76" [1,930 mm])
Width 2-1/4" [57 mm], 2-1/2" [64 mm], 3-1/4" [83 mm], 4-1/4" [108 mm] *
* 4-1/4": Available for special orders of at least 500 sq. ft.
Content per box
  • 2-1/4" : 20 sq.ft
  • 2-1/2" : 20 sq.ft
  • 3-1/4" : 20 sq.ft
  • 4-1/4" : 18 sq.ft
Species 9 essences : Hard Maple, Yellow Birch, Red Oak, American Cherry, American Walnut, Tigerwood, Brazilian Cherry (Jatoba).
Certification All Mirage Classic products in Oak, Maple, Yellow Birch are eligible for FSC Mixed Source certification.
Grade
  • Select & Better (slight natural color variations)
  • Exclusive (full range of natural color variations)
Color choice Natural, Sonora, Golden, Sierra, Savanna, Colorado, Rich Oak, Montana, Cognac, Bordeaux, Nevada, Auburn, Toffee, Truffle, Alaska, Greystone, Charcoal, Graphite, Java, Umbria, Vienna, Sambuca
Finish
  • NanolinxTM : finishing system made of aluminum oxide and nanosilica particle composites suspended in UV cured polyurethane.
  • Up to 5 times more wear-resistant than most other finishes on the market.
  • UV protection on Natural (without stain), excepting American Cherry, American Walnut, Tigerwood, and Brazilian Cherry (Jatoba).
Cashmere TM* or Semi-Gloss
Installation Nailed or stapled down (above and on grade)
Subfloor Wood
Maintenance Quick and easy with Mirage Clean maintenance kit
Use Residential or light commercial
Warranty
  • Structural lifetime limited warranty

    NanolinxTM Original :

  • 25-year finish warranty for residential applications
  • 3-year finish warranty for light commercial applications



Mirage Engineered

Mirage Engineered Board
  • Real wood boards with a hardwood plywood base, uniform thickness and width, available in 2-9/16 in. [65 mm], 3-5/16 in. [84 mm], 5 in. [127 mm], and 6-1/2 in. [165 mm]
  • Manufactured to allow installation anywhere, even over floors with radiant heat systems [glued onto concrete or stapled over a wood subfloor]
  • PerfectScoreTM technology on the back of boards for better glue adhesion and increased flexibility
  • Micro-V joint on all four sides of the board, prevents dust and dirt buildup
  • All finishes are VOC and formaldehyde free for better air quality
  • Can be sanded three to five times for an even longer lasting floor
  • Each box contains 6 assorted lengths, up to 69-1/4 in. for great looks and quick installation
  • Green approach
General specifications
General specifications

Description
  • Engineered prefinished hardwood flooring, with tongue and groove edges
  • Micro-V bevel [on 4 sides], Sawn hardwood layer 5/32" [4 mm]
  • Herringbone features grooves at both ends.
Thickness
  • 2-9/16" and 3-5/16" : 3/8" [10 mm]
  • 5" and 6-1/2" wide : 1/2" [13 mm]
Length 6 assorted lengths per box:
  • 2-9/16" width: from 13-3/4" [350 mm] to 46-7/8" [1191 mm]
  • 3-5/16" width: from 13-3/4" [350 mm] to 45-3/8" [1152 mm]
  • 5" width: from 19” [482 mm] to 60" [1524 mm]
  • 6-1/2" width : from 19-11/16" [500 mm] to 69-1/4" [1758 mm]

Herringbone : 2 fixed lengths - 13-3/4" [350 mm] and 17-7/8" [455 mm]
* Available for special orders of at least 500 sq. ft.
Width 2-9/16" [65 mm], 3-5/16" [84 mm], 5" [127 mm], 6-1/2" [165 mm]
Content per box
  • 2-9/16" : 20 sq.ft
  • 3-5/16" : 25 sq.ft
  • 5" : 25 sq.ft
  • 6-1/2" : 25 sq.ft

Herringbone [Length 13-3/4"] : 17.63 sq.ft
Herringbone [Length 17-7/8"] : 15.28 sq.ft
Species Hard Maple, Yellow Birch, Red Oak, American Cherry, American Walnut, Brazilian Cherry [Jatoba], Santos Mahogany [Cabreuva], Sapele, Canadian Breza.

Availability depends on width.
Certification All Mirage Engineered products in Oak, Maple, Yellow Birch, and Canadian Breza are eligible for FSC Mixed Source certification.
Grade
  • Select & Better [slight natural color variations]
  • Exclusive [full range of natural color variations]
Color choice Natural, Sonora, Golden, Sierra, Savanna, Colorado, Rich Oak, Montana, Cognac, Nevada, Auburn, Brass, Terracotta, Bronze, Bali Coco, Alaska, Greystone, Charcoal, Graphite, Java, Umbria, Vienna, Sambuca, Isla, Urbana, Terra, Toffee, Truffle, Gingerbread, Brownie, Black Jelly Bean, Carousel, Château, Teddy Bear, Onyx, Henna
Finish
  • NanolinxTM : finishing system made of aluminum oxide and nanosilica particle composites suspended in UV cured polyurethane.
  • Up to 5 times more wear-resistant than most other finishes on the market.
  • UV protection on Natural [without stain], excepting American Cherry, American Walnut, and Brazilian Cherry [Jatoba].
Cashmere MD or Semi-Gloss
Installation Stapled or glued down [above, on and below grade]
Subfloor Wood, concrete or radiant heat system [with the exception of Brazilian Cherry].
Maintenance Quick and easy with Mirage Clean maintenance kit
Use Residential or light commercial
Warranty
  • Structural lifetime limited warranty

    NanolinxTM Original :

  • 25-year finish warranty for residential applications
  • 3-year finish warranty for light commercial applications

    NanolinxMC Premium (Commercial Grade Finish) :

  • Five [5] years from the date of purchase, on NanolinxTM Premium finish, when used under commercial conditions, excluding heavy commercial use.
Cutting Methods Dry sawing results in a board that meets the desired thickness, with a fine, straight grain and no pattern repetition.

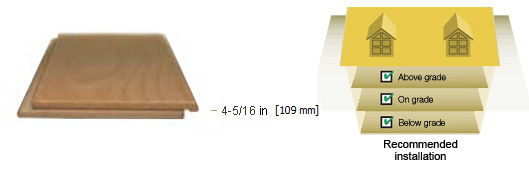

Mirage Lock

Mirage Lock Board
  • Real hardwood boards with a high density fiber core
  • Manufactured to allow installation anywhere, even on floors with radiant heat systems
  • Boards interlock with one quick movement thanks to RightLoc™ technology, available in 4-5/16 in. [109 mm] width
  • Floor can be moved and reused
  • Easy installation: no glue, nails, or staples required
  • Micro-V joint on all four sides of the board, prevents dust and dirt build-up
  • All finishes are VOC and formaldehyde free for better air quality
  • Each box contains five assorted lengths, up to 46-1/8 in. for great looks and quick installation
  • Green approach: maximization of wood used and use of recycled post-industrial materials
General specifications
General specifications

Description
  • Glueless engineered prefinished hardwood floors, Sawn hardwood layer 3/32" [2 mm]
  • With RightlocTM system
  • Micro-V bevel (on 4 sides)
Thickness 7/16" [11 mm]
Length 6 assorted lengths per box from (13-3/4" [350 mm] to 46-1/8" [1172 mm])
Width 4-5/16" [109 mm]
Content per box 4-5/16" : 22 sq.ft
Species Hard Maple, Red Oak, Sapele.
Certification All Mirage Lock products in Oak and Maple are eligible for FSC Mixed Source certification.
Grade Exclusive (full range of natural color variations)
Color choice Natural, Sierra, Montana, Nevada, Auburn, Charcoal, Umbria, Vienna
Finish
  • NanolinxTM : finishing system made of aluminum oxide and nanosilica particle composites suspended in UV cured polyurethane.
  • Up to 5 times more wear-resistant than most other finishes on the market.
  • UV protection on Natural (without stain).
Semi-Gloss, Cashmere TM*
Installation Glueless (above, on and below grade)
Subfloor Wood, concrete or radiant heat system
Maintenance Quick and easy with Mirage Clean maintenance kit
Use Residential or light commercial
Warranty
  • Structural lifetime limited warranty

    NanolinxTM Original :

  • 25-year finish warranty for residential applications
  • 3-year finish warranty for light commercial applications
Cutting Methods Dry sawing results in a board that meets the desired thickness, with a fine, straight grain and no pattern repetition.
